Faxon Firearms set out to create a bolt carrier group that could live up to the GUNNER name with no compromise in strength or function. They set specifications that would allow no compromise: Lightest Weight Possible (8.5 Ounces Complete) MIL-SPEC Materials & Finishes or Better! Forward Assist Serrations Compatible with Dust Covers Maintains Full-Auto Trip Sear for full-auto and the new multi-stage trigger functionality Looks Amazing Matching their barrels, they selected the QPQ method of Salt Bath Nitride for all the carriers’ components. By coating all parts, the carrier's natural slickness is increased markedly requiring less gas and pressure to operate. Further, the QPQ SBN process seals components against corrosion while making them fantastically wear resistant. Improvements include using 9310 tool steel for the bolt, which is stronger and nitriding the assembly to increase surface hardness, decrease resistance, and have superior corrosion resistance compared to typical chrome and phosphasted bolt carrier groups. All bolts are fully MPI tested to ensure the material is sound and without defects. Bolt lugs are chamfered 45 degrees to ensure reliable action for even the highest pressure hand loads and fast lightweight actions. Faxon Bolt Carrier Groups are Superfinished to reduce friction, increase smoothness of operation, and reduce fouling. Further, they are full-Auto rated and maintain the trip for full-auto fire control groups and new multi-stage trigger systems. Gas keys use grade 8 fasteners and are fully staked for a lifetime of service. As a testament of our confidence, the carriers are all laser-engraved with the Faxon Shield after passing all Quality inspections. DETAILED SPECIFICATIONS: Bolt: 9310 Tool Steel Construction (Stronger than C158) Full MIL-SPEC Heat Treatment Shot Peened to MIL-SPEC Magnetic Particle Inspection (MPI) Back of Lugs Chamfered for Reliability Spring, Insert, & "Crane" O-Ring Installed QPQ - Salt Bath Nitrided Extractor: S7 Tool Steel Construction Fully Heat Treated Shot Peened Per MIL-SPEC QPQ - Salt Bath Nitrided Carrier & Key: Superfinished Carrier Carrier: MIL-SPEC 8620 Steel Material Key: 4140 Steel Material Fully Heat Treated Forward Assist Serrations M16 (FULL-AUTO) Compatible Grade 8 Fasteners Fully & Properly Staked Key, Permatex Sealed QPQ - Salt Bath Nitrided Weight w/ Key (Not Bolt or any Pins): 6.32 Ounces Cam Pin: 4140 Pre-Hardended Steel Material QPQ - Salt Bath Nitrided
Unmatched Performance and Reliability for Your AR-15

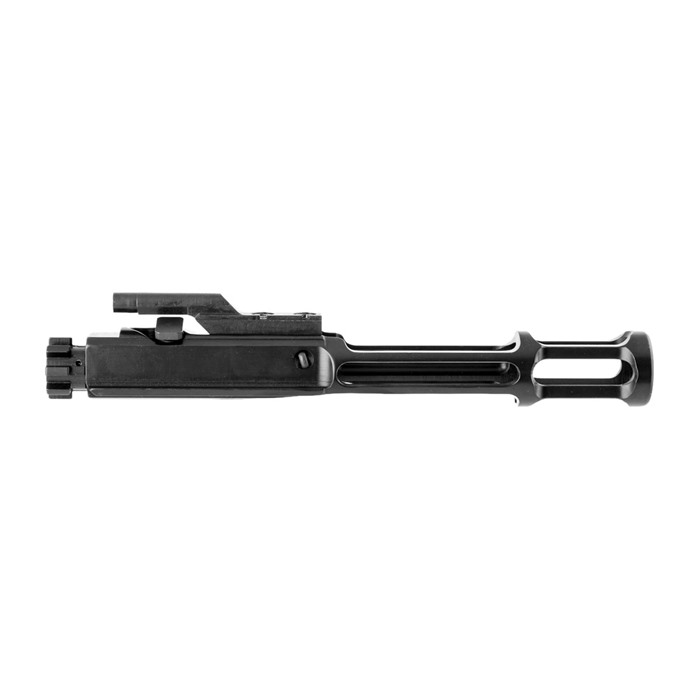

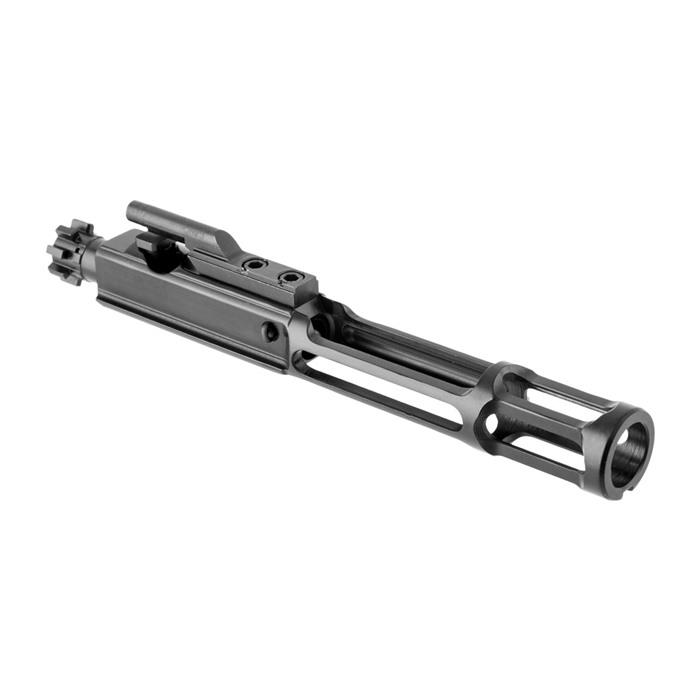

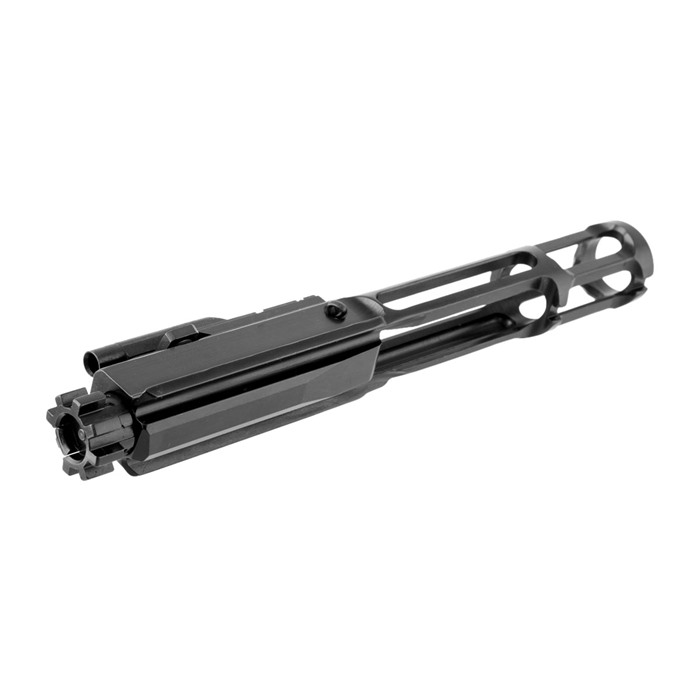

Introducing the AR-15 LIGHTWEIGHT 5.56 BOLT CARRIER COMPLETE from FAXON FIREARMS. This bolt carrier group is designed to embody the GUNNER name, ensuring strength and functionality without compromise.
Key Features:
- Lightest Weight Possible: Only 8.5 ounces complete
- MIL-SPEC Materials & Finishes: Exceeds standard specifications
- Forward Assist Serrations: Enhanced operational control
- Compatible with Dust Covers: Versatile design
- Full-Auto Trip Sear: Supports full-auto and multi-stage trigger functionality
All components are treated using the QPQ method of Salt Bath Nitride, which significantly improves the carrier's slickness, requiring less gas and pressure for operation. This process also seals components against corrosion and enhances wear resistance.
Specifications:
- Bolt:
- 9310 Tool Steel Construction (Stronger than C158)
- Full MIL-SPEC Heat Treatment
- Shot Peened to MIL-SPEC
- Magnetic Particle Inspection (MPI)
- Back of Lugs Chamfered for Reliability
- Spring, Insert, & "Crane" O-Ring Installed
- QPQ - Salt Bath Nitrided
- Extractor:
- S7 Tool Steel Construction
- Fully Heat Treated
- Shot Peened Per MIL-SPEC
- QPQ - Salt Bath Nitrided
- Carrier & Key:
- Superfinished Carrier
- Carrier: MIL-SPEC 8620 Steel Material
- Key: 4140 Steel Material
- Fully Heat Treated
- Forward Assist Serrations
- M16 (FULL-AUTO) Compatible
- Grade 8 Fasteners
- Fully & Properly Staked Key, Permatex Sealed
- QPQ - Salt Bath Nitrided
- Weight w/ Key (Not Bolt or any Pins): 6.32 Ounces
- Cam Pin:
- 4140 Pre-Hardended Steel Material
- QPQ - Salt Bath Nitrided

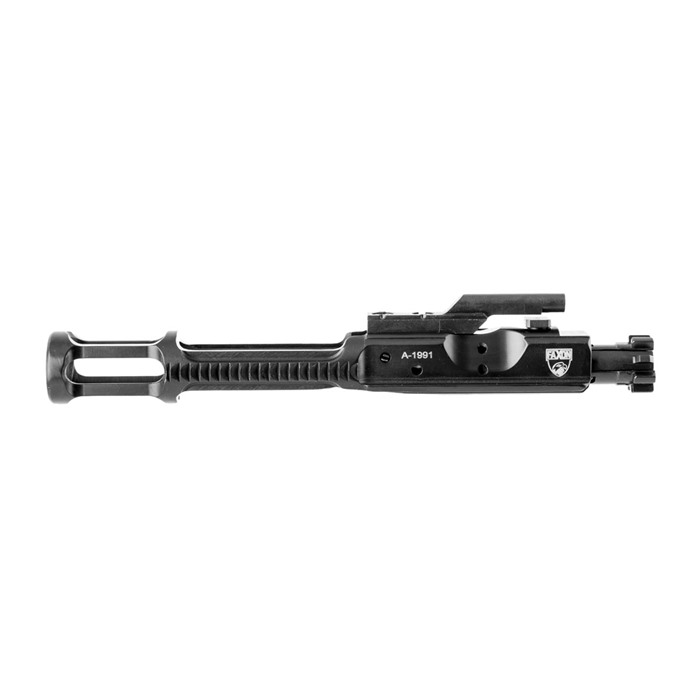

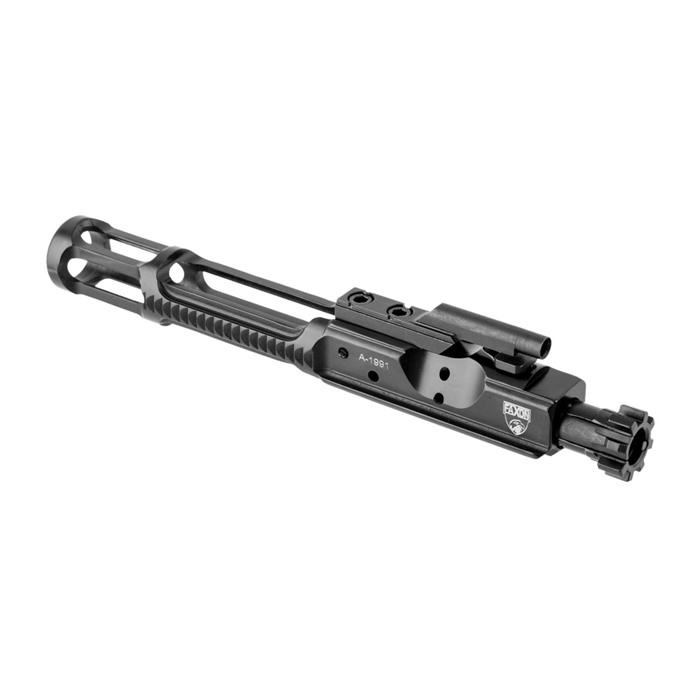

Each bolt carrier is laser-engraved with the Faxon Shield after passing rigorous quality inspections, ensuring you receive a product you can trust.
